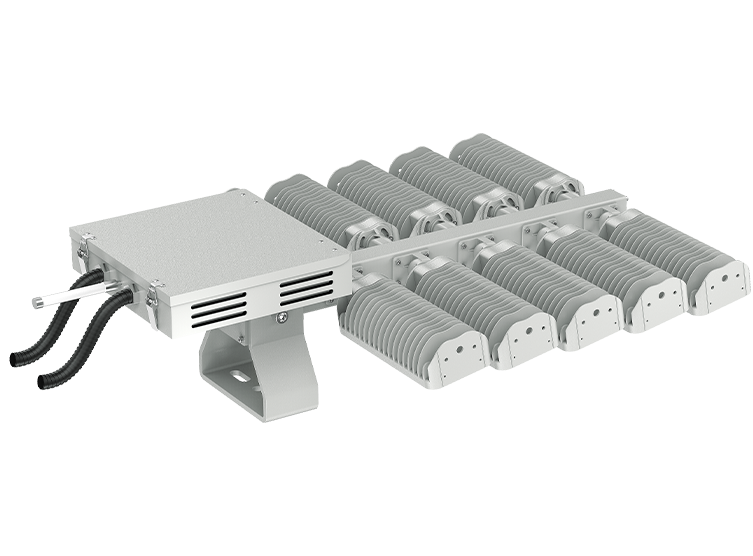

EAGLE 1500W/1800W

Your Location: Index LED SPORTS LIGHTING EAGLE SERIES

EAGLE 1500W/1800W

SOGA patent design under the inspiration of Eagle, Like the eagle's eyes, it accurately confirms the target, free and flexible, and precisely illuminated.and also with other competitive features as below:

Patent SOGA Streamlined Design
High-quality Die-casting aluminium housing
Vertically and Horizontally Adjustable Modular Design
Smaller Size and Lighter Weight
Anti-Glare & Obtrusive Light Control
Easy Aiming Check One-size Screws for all adjustment
Tool-free driver box
Quick Connected Electrical Box
Wireless Smart Control
Wireless or DMX Entertainment System

SEND INQUIRY

Features

Parameters

Download

Input Voltage: AC90-305V/AC108-528V
LED Brand: Lumileds 5050
Housing: Aluminum
CRI: 70 80 90
Bracket: Aluminum
Operating Temp: -40℃ to 55℃
Driver: Meanwell, Sosen, Inventronics
Power Factor: >0.95
Dimming Solutions: 0-10v Dimming, DALI, CLO,Zigbee
Warranty : 5 yrs warranty
CCT: 3000K 4000K 5000K 5700K 6500K
IP Rate: IP66
Wireless Control: Available
Driver Box: Detachable
Beam Angle: 20°,40°, 60°,Asymmetric 60°,Asymmetric 60W
IK Rate: IK08
Optional Accessories:Spill Cover, Angle Rubler Sight, SPD, Seperated Driver Box, Zigbee Gateway, Zigbee Controller, Zigbee Wall Switch
L70 Hour: >60,000 H
Wattage/module: Symmetrical：180W；Asymmetrical：150W
Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)

Model	SG-EG-600W	SG-EG-720W	SG-EG-900W	SG-EG-1080W	SG-EG-1200W	SG-EG-1440W	SG-EG-1500W	SG-EG-1800W
WATTAGE	600W	720W	900W	1080W	1200W	1440W	1500W	1800W
MODEL QTY	4	4	6	6	8	8	10	10
LUMEN EFFICIENCY	145LM/W	170LM/W	145LM/W	170LM/W	145LM/W	170LM/W	145LM/W	170LM/W
LUMNE OUTPUT	87000LM	122400LM	130500LM	183600LM	174000LM	244800LM	217500LM	306000LM
