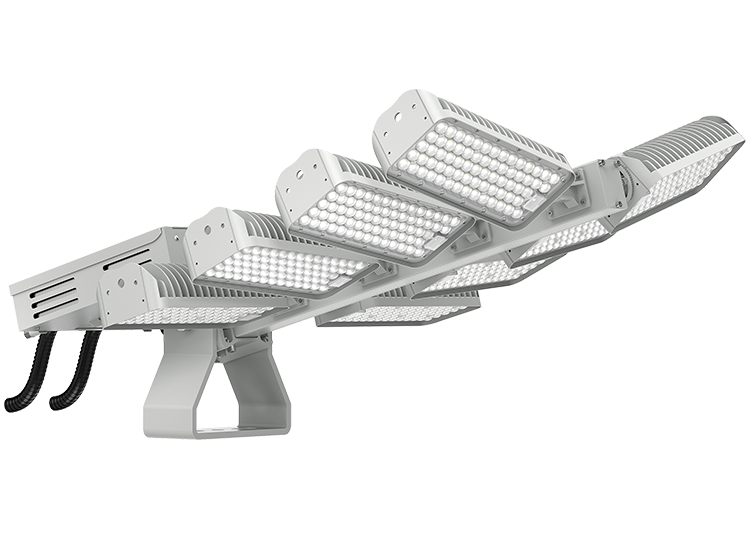

EAGLE 1200W/1440W

SOGA patent design under the inspiration of Eagle, Like the eagle's eyes, it accurately confirms the target, free and flexible, and precisely illuminated.and also with other competitive features as below:



  • Patent SOGA Streamlined Design

  • High-quality Die-casting aluminium housing

  • Vertically and Horizontally Adjustable Modular Design

  • Smaller Size and Lighter Weight

  • Anti-Glare & Obtrusive Light Control

  • Easy Aiming Check One-size Screws for all adjustment

  • Tool-free driver box

  • Quick Connected Electrical Box

  • Wireless Smart Control

  • Wireless or DMX Entertainment System


SEND INQUIRY
Features
Parameters
Download
  • Input Voltage: AC90-305V/AC108-528V
  • LED Brand: Lumileds 5050
  • Housing: Aluminum
  • CRI: 70 80 90
  • Bracket: Aluminum
  • Operating Temp: -40℃ to 55℃
  • Driver: Meanwell, Sosen, Inventronics
  • Power Factor: >0.95
  • Dimming Solutions: 0-10v Dimming, DALI, CLO,Zigbee
  • Warranty : 5 yrs warranty
  • CCT: 3000K 4000K 5000K 5700K 6500K
  • IP Rate: IP66
  • Wireless Control: Available
  • Driver Box: Detachable
  • Beam Angle: 20°,40°, 60°,Asymmetric 60°,Asymmetric 60W
  • IK Rate: IK08
  • Optional Accessories:Spill Cover, Angle Rubler Sight, SPD, Seperated Driver Box, Zigbee Gateway, Zigbee Controller, Zigbee Wall Switch
  • L70 Hour: >60,000 H
  • Wattage/module: Symmetrical:180W;Asymmetrical:150W
  • Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)
Model SG-EG-600W SG-EG-720W SG-EG-900W SG-EG-1080W SG-EG-1200W SG-EG-1440W SG-EG-1500W SG-EG-1800W
WATTAGE 600W 720W 900W 1080W 1200W 1440W 1500W 1800W
MODEL QTY 4 4 6 6 8 8 10 10
LUMEN EFFICIENCY 145LM/W 170LM/W 145LM/W 170LM/W 145LM/W 170LM/W 145LM/W 170LM/W
LUMNE OUTPUT 87000LM 122400LM 130500LM 183600LM 174000LM 244800LM 217500LM 306000LM
