Your Location: Index LED STREET LIGHTING
DELPHINUS SERIES 100W

DELPHINUS Series is the best alternative for traditional street and area lighting with quick payback, improved performance and preventing light pollution. This fixture is easy in installation, from 50 wattage to 200 wattage and also with other competitive features as below:



  • Powder-coated aluminum housing

  • Tool free access to LED driver

  • Protection switch connector

  • IP66 (EN60529 compliant) rated water-proof

  • Optional photocell daylight sensor

  • Smart Wireless control

  • Free Dialux Simulations





SEND INQUIRY
Features
Parameters
Download

Smooth Back Cover Design

Effectively prevent the dust or bird droppings from accumulating.



  • Input Voltage:AC200-240V, 50/60HZ

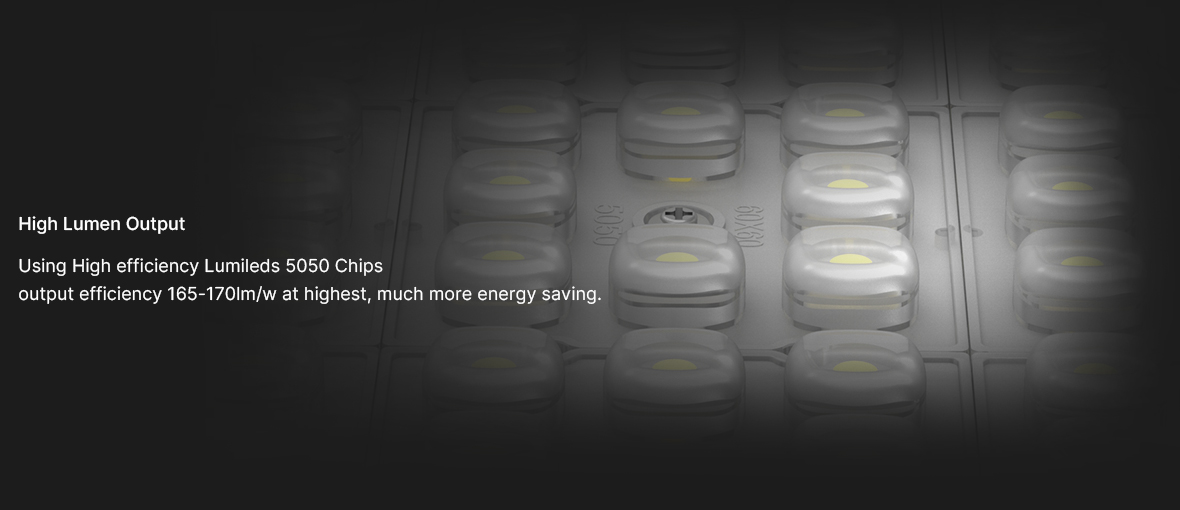

  • LED Brand: SMD5050
  • CRI: 70 80 90
  • Operating Temp: -40℃ to 55℃
  • Driver:Sosen
  • Power Factor: >0.95
  • Beam Angle: 155°*80°
  • Sensor: Motion Sensor;dayight Sensor
  • Warranty : 5 yrs warranty
  • Dimming Solutions: 0-10v Dimming, DALI
  • IP Rate: IP66
  • Housing: Aluminum
  • Surge Protection: 10KV
  • L90 Hour: >100,000 H
  • CCT:4000K
  •
Model SG-DPH-50W SG-DPH-70W SG-DPH-100W SG-DPH-120W SG-DPH-150W SG-DPH-200W
Power 50W 70W 100W 120W 150W 200W
Lumen output 7500lm 10500lm 15000lm 18000lm 22500lm 30000lm
