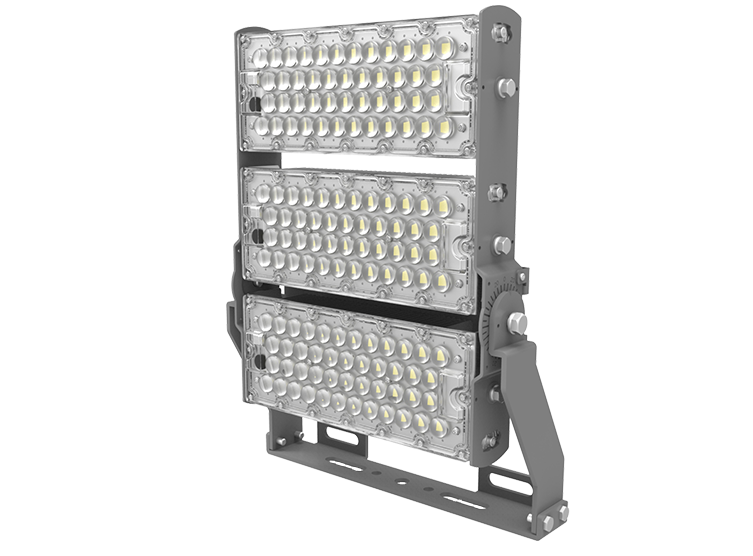

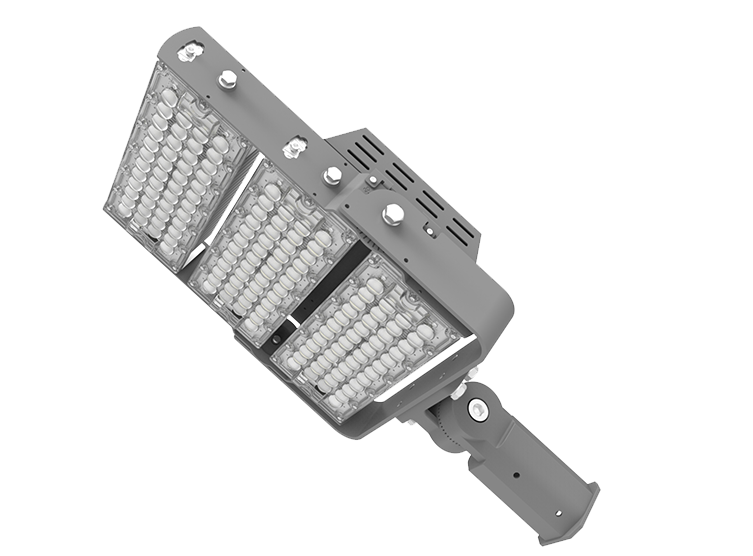

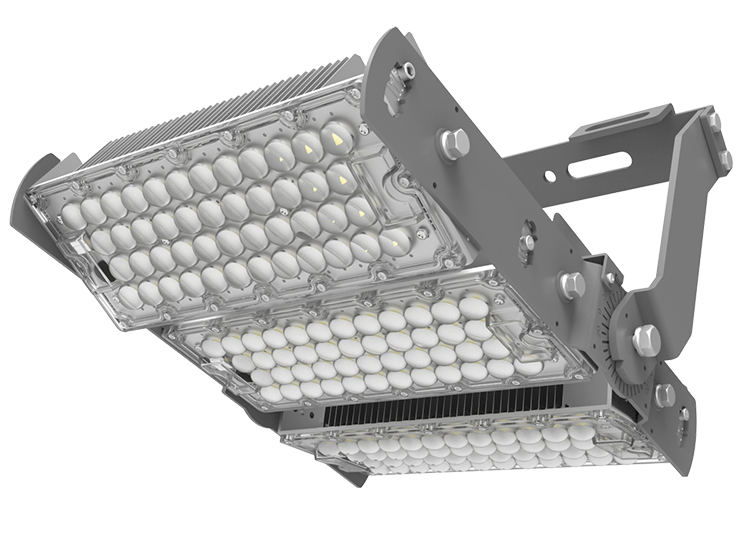

FOCUS G2 360W

G2 series are with the same light module as Hawk series, but into different structure to cover more general outdoor lighting and industrial lighting applications. One is enough for most of your lighting projects!


  • From 100W to 1440W

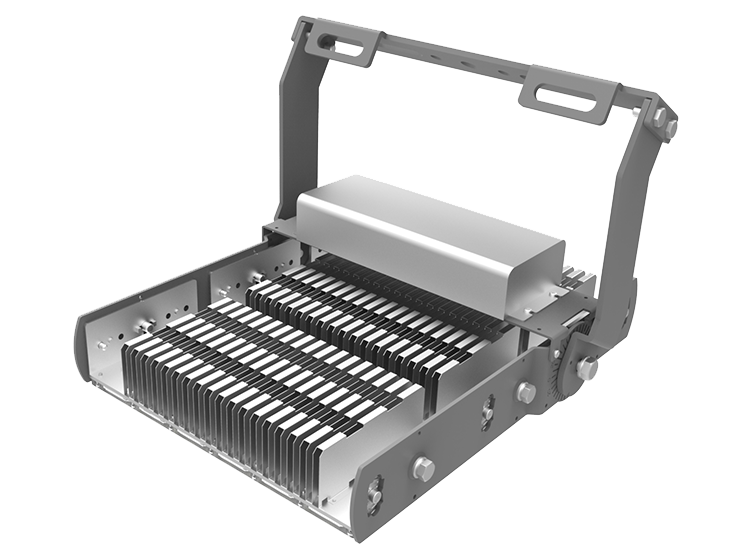

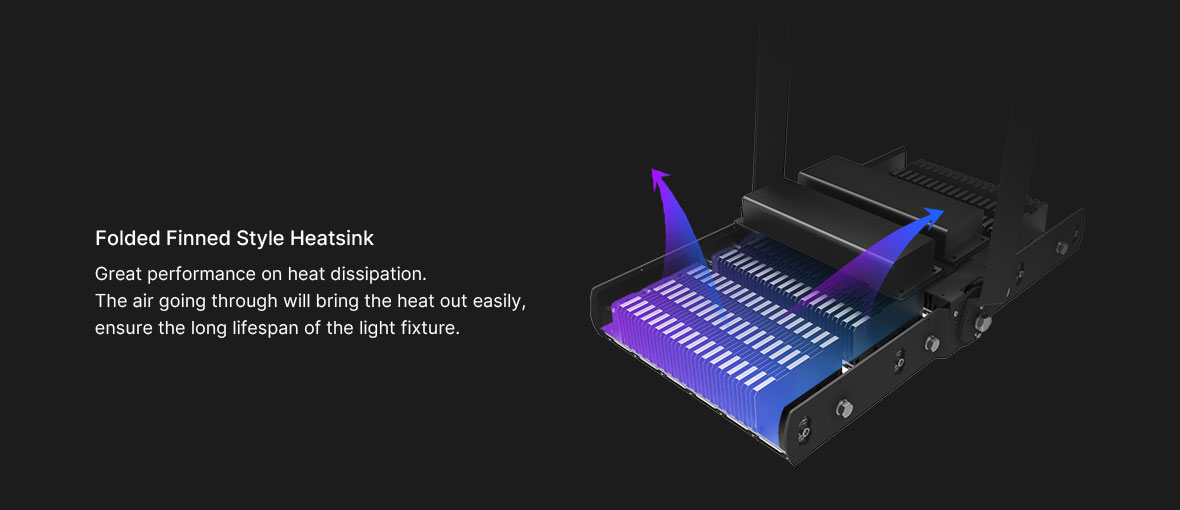

  • Light weight with fin-style Aluminum heatsink

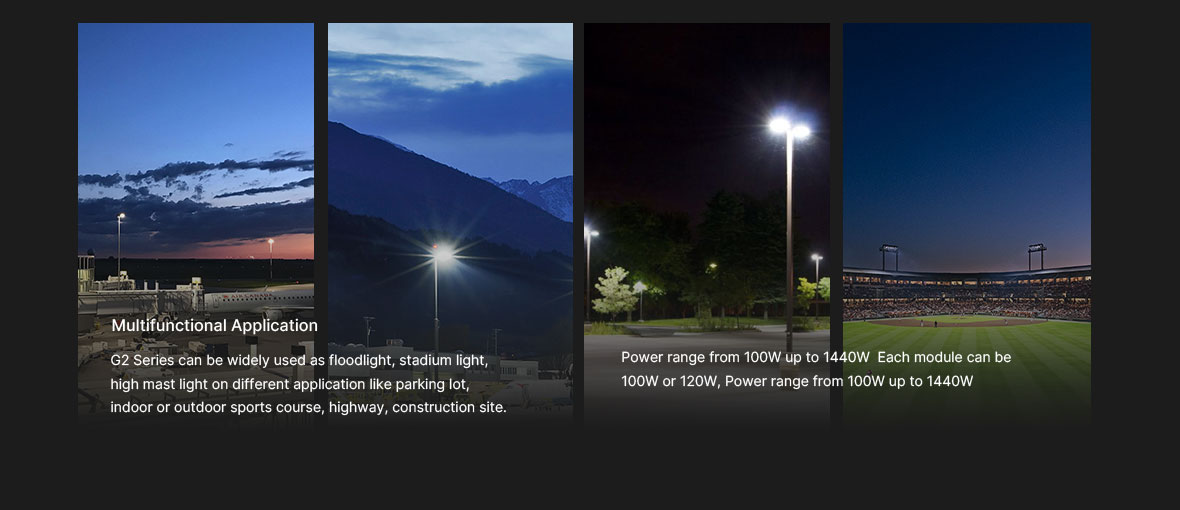

  • Multifunctional lighting application

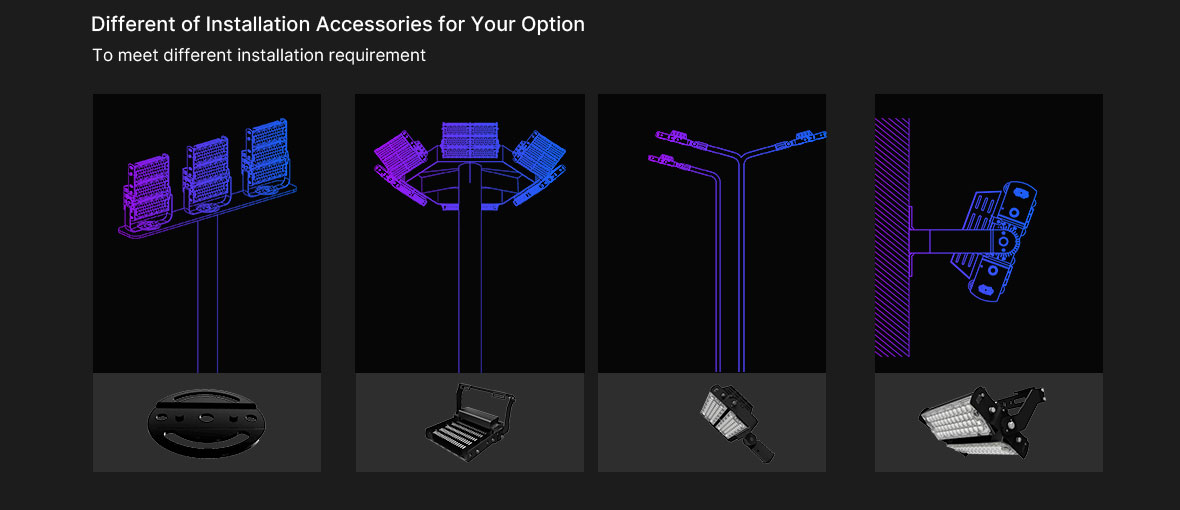

  • Different brackets for different installation ways (such as poles or wall mounted)

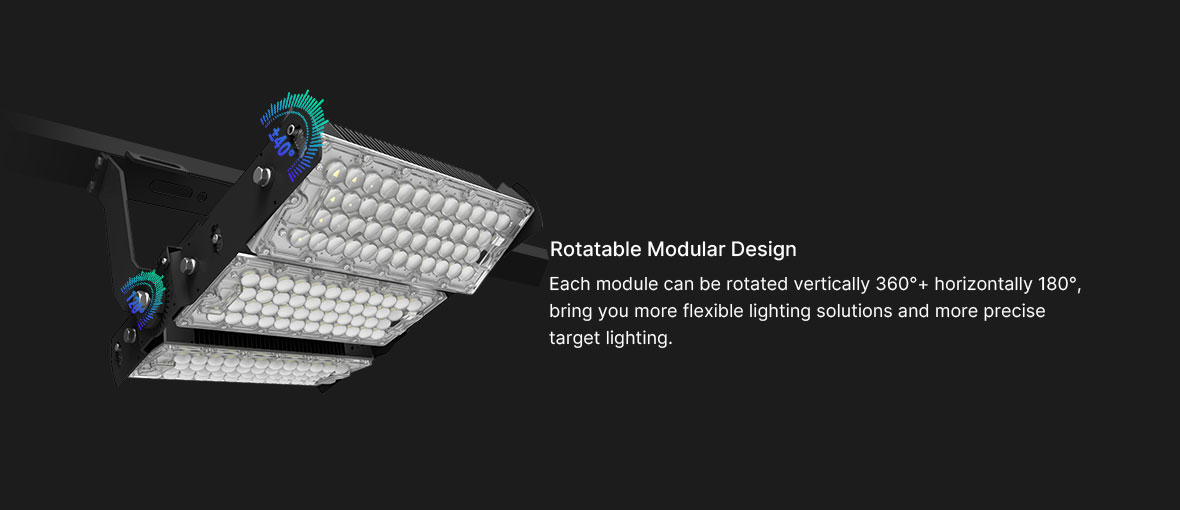

  • More uniform lighting with the rotatable modular design

  • Glare Control with light spill cover

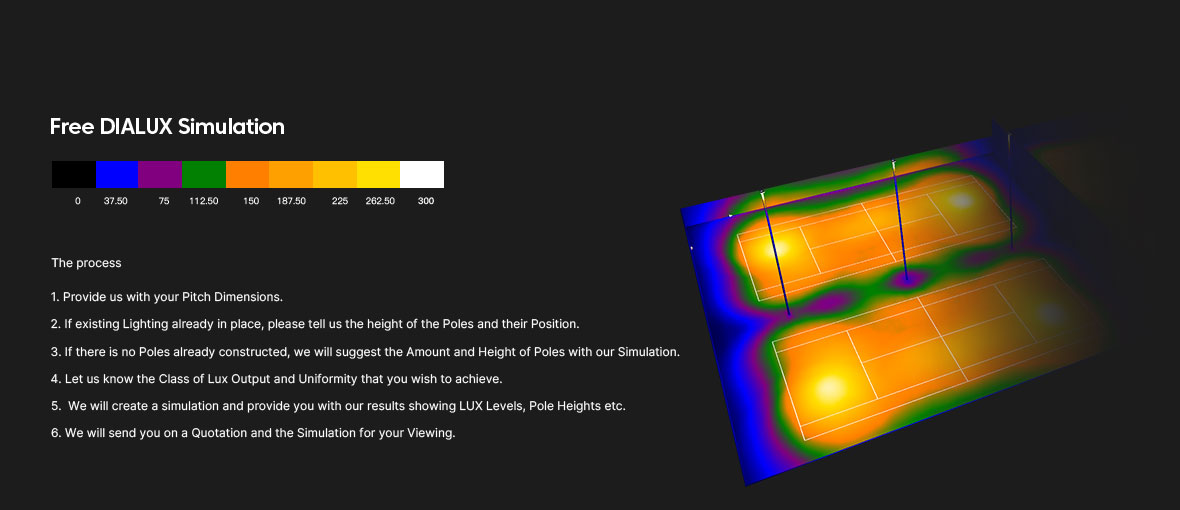

  • Free Dialux Simulations

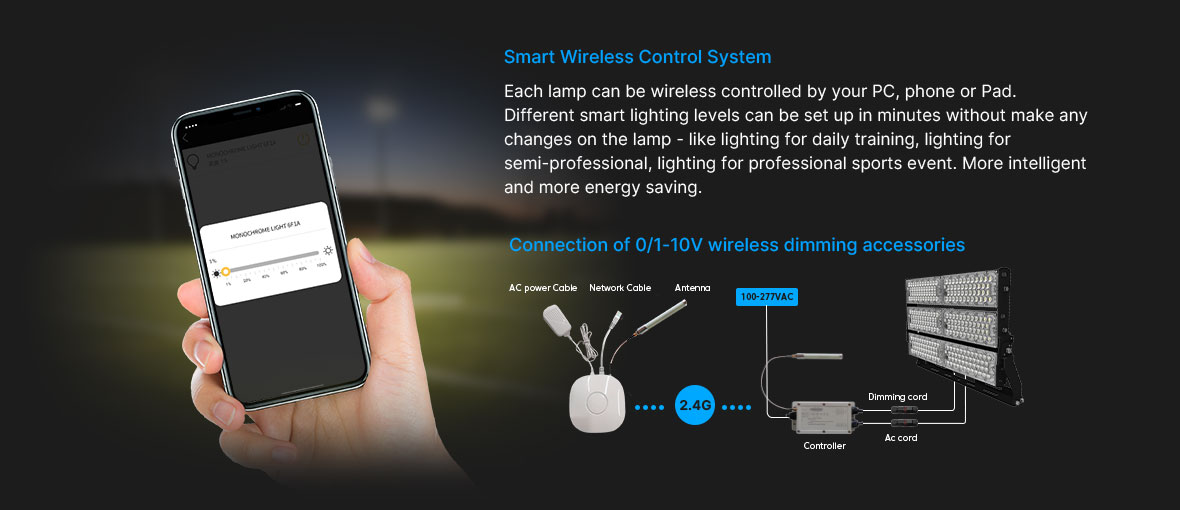

  • Smart Wireless Control

SEND INQUIRY
Features
Parameters
Download

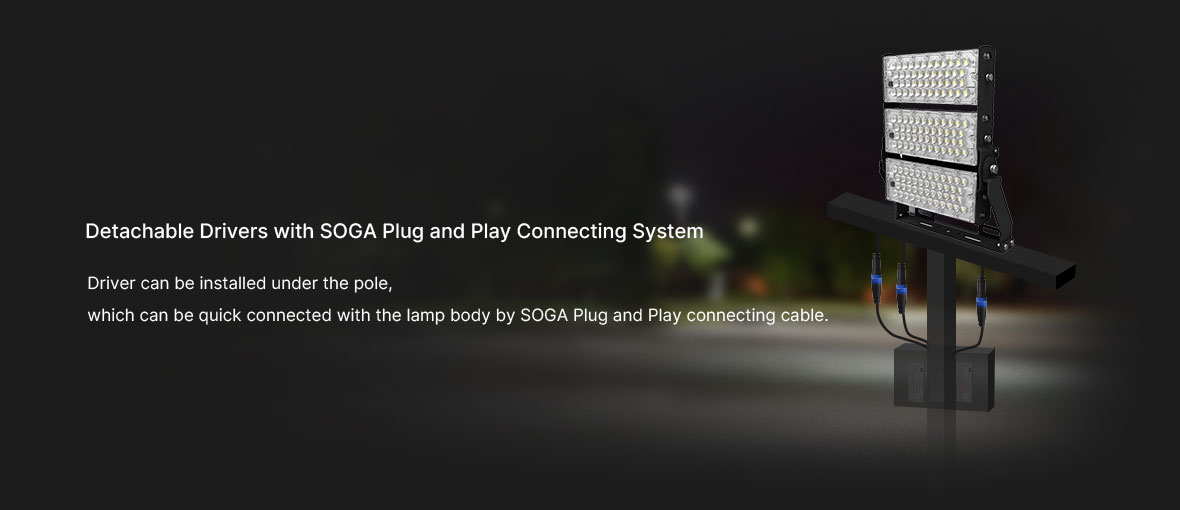

Detachable Drivers with SOGA Plug and Play Connecting System


Driver can be installed under the pole, which can be quick connected with the lamp body by SOGA Plug and Play connecting cable.



  • Input Voltage: AC90-305V/AC108-528V
  • LED Brand: Lumileds 5050
  • Housing: Aluminum
  • CRI: 70 80 90
  • Bracket: Iron or Stainless Steel
  • Operating Temp: -40℃ to 55℃
  • Driver: Meanwell, Sosen, Inventronics
  • Power Factor: >0.95
  • Dimming Solutions: 0-10v Dimming, DALI, CLO
  • Warranty : 5 yrs warranty
  • CCT: 3000K 4000K 5000K 5700K 6500K
  • Housing color: Gray or other customized color
  • IP Rate: IP65
  • Wireless Control: Available
  • Driver Box: Detachable
  • Beam Angle: 20°,40°, 60°,90°,h140*v100
  • L70 Hour: >60,000 H
  • Wattage/module: 100w or 120w

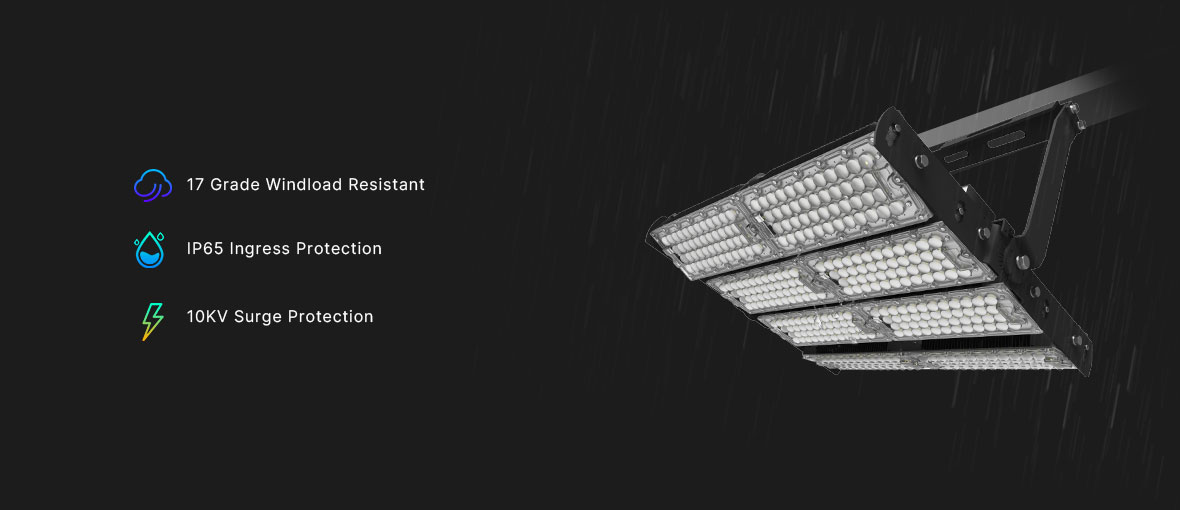

  • Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)
  • 尺寸图(G2).png
Model SG-G2-120W SG-G2-240W SG-G2-360W SG-G2-480W SG-G2-720W SG-G2-960W
Model Qty 1 2 3 4 6 8
Power 120W 240W 360W 480W 720W 960W
Lumen Output 18000LM 36000LM 54000LM 72000LM 108000LM 144000LM
