BARRETT E SERIES 250W

As an important member of Barrett Family, E series are more suitable for those small fields or outdoor area, for example: Tennis Courts, Padel courts, Horse riding field. Same as other Barrett members, E series are also with below shinning features::



  • From 250W to 900W

  • Precise target lighting with the all-direction rotatable modular design

  • Glare Control with light spill cover

  • Class 17 wind load resistance

  • Free Dialux Simulation

  • Broadcast standard TLCI＞90

  • No exposed electric wire

  • Wireless Control

  • Detachable driver box

  • Quick connection plug



SEND INQUIRY
Features
Parameters
Download

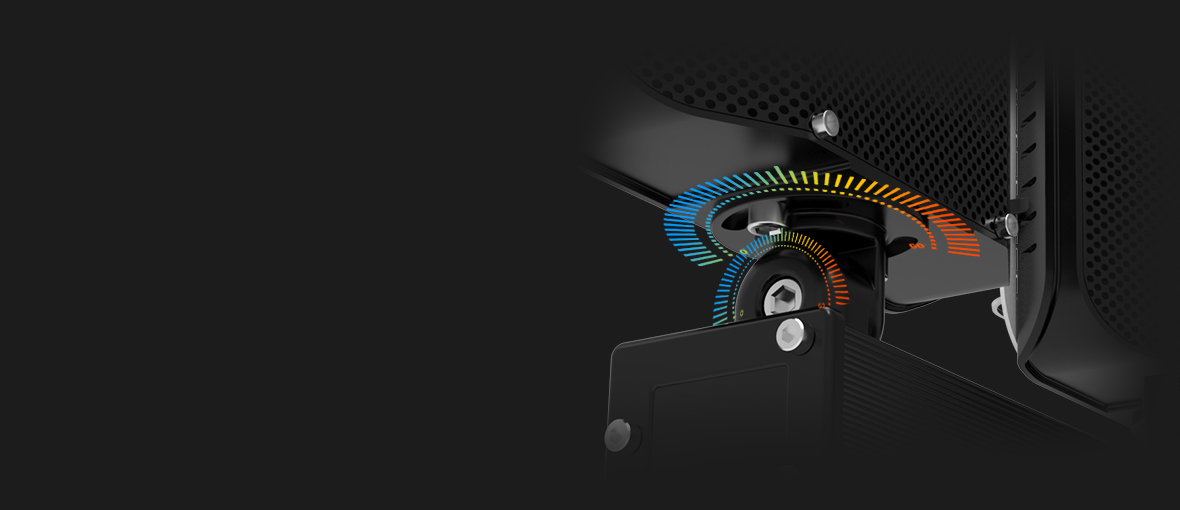

Rotatable Modular Design

Each module can be rotated vertically 360°+ horizontally 180°,

bring you more flexible lighting solutions and more precise target lighting.



Protection Mesh Cover on Back

Keep the lamp always clean from the bird droppings or leaves,

avoid the birds build the nests on lamp. The perfect heat

dissipation performance on lamp will be ensured at the same time.


Ultra-thick Stainless Steel Bracket

7.5mm stainless steel installation bracket, Rugged

Weather-Tight Design



High-Definition Broadcasting Standard

High TLCI solution can be offered to meet

high-level broadcasting sports event.



DMX Amusement Function

Bring all audience an amazing colorful lighting effect

before the match begin. One lamp is enough for the

amusement and functional lighting.



  • Input Voltage: AC90-305V/AC108-528V
  • Lumen Efficiency: 145 to 175LM/W
  • LED Brand: Lumileds 5050
  • Housing: Aluminum
  • CRI: 70 80 90
  • Bracket: Stainless Steel
  • Operating Temp: -40℃ to 55℃
  • Driver: Meanwell, Sosen, Inventronics
  • Power Factor: >0.95
  • Dimming Solutions: 0-10v Dimming, DALI, CLO
  • Warranty : 5 yrs warranty
  • CCT: 3000K 4000K 5000K 5700K 6500K
  • IP Rate: IP66
  • Wireless Control: Available
  • Driver Box: Detachable
  • Beam Angle: 20°,40°, 60°,90°,Asymmetric 50°
  • IK Rate: IK08
  • Optional Accessories: Light Spill Cover; Protection Shield
  • L70 Hour: >60,000 H
  • Wattage/module: 250w or 300w
  • Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)
    • 尺寸图.png
Model SG-BA-E250W SG-BA-E300W SG-BA-E500W SG-BA-E600W SG-BA-E750W SG-BA-E900W
WATTAGE 250W 300W 500W 600W 750W 900W
MODEL QTY 1 1 2 2 3 3
WATTAGE/MODULE 250W 300W 250W 300W 250W 300W
LUMEN EFFICIENCY 145-175LM/W 145-175LM/W 145-175LM/W 145-175LM/W 145-175LM/W 145-175LM/W
LUMEN OUTPUT 36250-43750LM 43500-52500LM 72500-87500LM 87000-105000LM 108750-131250LM 130500-157500LM
