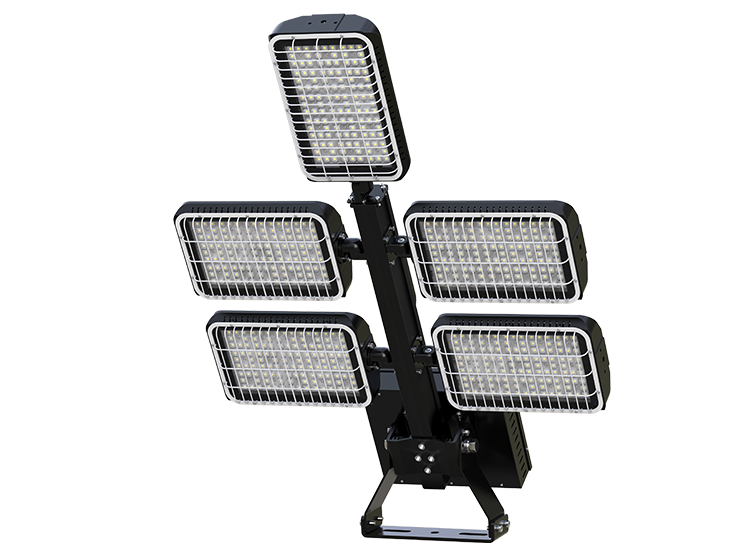

BARRETT Y SERIES 1250W

SOGA patent design under the inspiration of Barrett rifle. Which is similar as the rifle, Precise targeting is the most outstanding feature of SOGA Barrett Series Sports lights, and also with other competitive features as below:



  • Precise target lighting with the all-direction rotatable modular design

  • Glare Control with light spill cover

  • Class 17 wind load resistance

  • Free Dialux Simulation

  • Broadcast standard TLCI＞90

  • No exposed electric wire

  • Wireless Control

  • Detachable driver box

  • Quick connection plug


SEND INQUIRY
Features
Parameters
Download

Rotatable Modular Design

Each module can be rotated vertically 360°+ horizontally 180°,

bring you more flexible lighting solutions and more precise target lighting.


Protection Mesh Cover on Back

Keep the lamp always clean from the bird droppings or leaves,

avoid the birds build the nests on lamp. The perfect heat dissipation performance


Stainless Steel Conduit

Protect the cable from any potential damage ,

like bird, rugged weather etc.


High-Definition Broadcasting Standard

High TLCI solution can be offered to meet

high-level broadcasting sports event.


DMX Amusement Function

Bring all audience an amazing colorful lighting effect

before the match begin. One lamp is enough for the

amusement and functional lighting.


  • Input Voltage: AC90-305V/AC108-528V
  • Lumen Efficiency: 145LM/W to 175LM/W
  • LED Brand: Lumileds 5050
  • Housing: Aluminum
  • CRI: 70 80 90
  • Bracket: Stainless Steel
  • Operating Temp: -40℃ to 55℃
  • Driver: Meanwell, Sosen, Inventronics
  • Power Factor: >0.95
  • Dimming Solutions: 0-10v Dimming, DALI, CLO
  • Warranty : 5 yrs warranty
  • CCT: 3000K 4000K 5000K 5700K 6500K
  • IP Rate: IP66
  • Wireless Control: Available
  • Driver Box: Detachable
  • Beam Angle: 20°,40°, 60°,90°,Asymmetric 50°
  • IK Rate: IK08
  • Optional Accessories: Light Spill Cover; Protection Shield
  • L70 Hour: >60,000 H
  • Wattage/module: 250w or 300w
  • Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)
    • 尺寸图(Y).png
Model SG-BA-Y1000W SG-BA-Y1200W SG-BA-Y1500W SG-BA-1800W
WATTAGE 1000W 1200W 1500W 1800W
MODEL QTY 4 4/5 5/6 6
WATTAGE/MODULE 250W 250 OR 300W 250 OR 300W 300W
LUMEN EFFICIENCY 145-175LM/W 145-175LM/W 145-175LM/W 145-175LM/W
LUMEN OUTPUT 145000-175000LM 174000-210000LM 217500-262500LM 261000-315000
